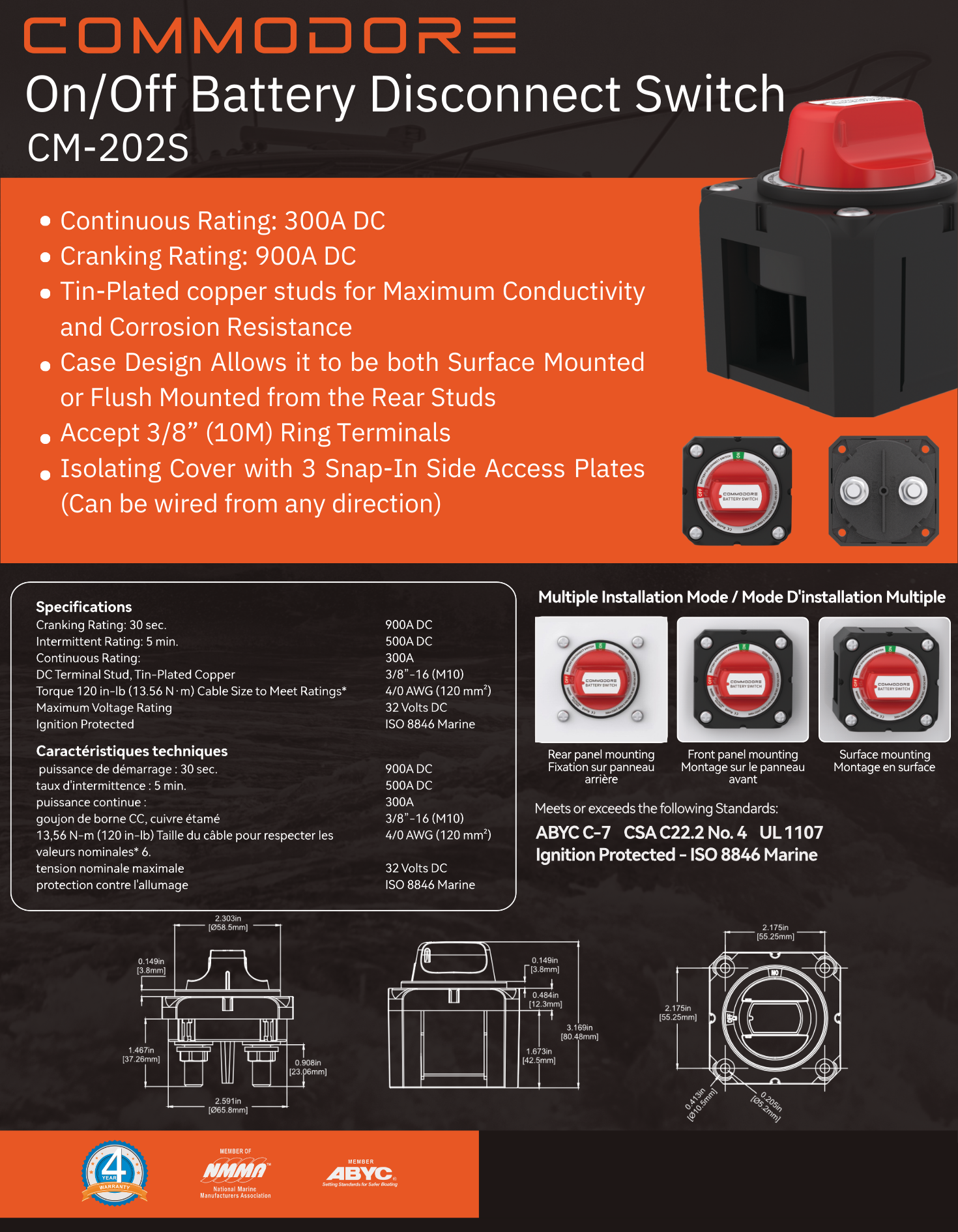

COMMODORE On/Off Battery Disconnect Switch

COMMODORE

(No reviews yet) Write a Review
SKU:
CM-202S
Weight:
0.65 LBS

Product Description

The COMMODORE CM-202S On/Off Battery Disconnect Switch provides a reliable, durable, and safe solution for managing your marine or RV electrical systems. With a 300A continuous rating and a 900A cranking rating, this battery switch is designed to handle high-power applications, ensuring stable operation for your boat, RV, or off-grid systems. Its tin-plated copper studs offer superior conductivity and corrosion resistance, while the IP66-rated isolating cover provides robust protection against water and debris.

This versatile switch can be surface-mounted or flush-mounted, with snap-off side pieces allowing wiring access from any direction. Designed to meet stringent marine safety standards, including ISO 8846 Marine Ignition Protection, this switch is a must-have for any professional or DIY marine electrical system. Built for durability and reliability, the COMMODORE CM-202S ensures your system stays safe and operational in even the harshest conditions.

More Key Features

✔️ High-Performance Ratings: Handles 300A continuous, 500A intermittent, and 900A cranking current, ensuring dependable performance for high-power marine or RV systems.

✔️ Durable Tin-Plated Copper Studs: Features corrosion-resistant copper studs for maximum conductivity and long-lasting performance in harsh environments.

✔️ Versatile Mounting Options: Can be surface-mounted or flush-mounted with snap-off side plates, offering flexible installation and clean cable management.

✔️ Water-Resistant and Ignition Protected: Certified to ISO 8846 Marine standards, IP66-rated for protection against water jets, and safe for use in engine compartments.

✔️ Easy Wire Access: The isolating cover includes three snap-off side pieces, allowing wiring from any direction while protecting rear terminals for enhanced safety.

✔️ Meets Industry Standards: Complies with ABYC C-7, UL 1107, CSA C22.2 No.4, and other stringent safety regulations, ensuring compatibility and reliability.

✔️ Compact and Lightweight Design: Weighing only 0.83 lbs (0.38 kg), the compact design saves space without compromising durability or performance.

✔️ Rugged Marine-Grade Construction: Built to withstand the harshest marine and off-grid environments, ensuring long-lasting protection and reliable operation.

Standard Switch Configurations

Model

CM-202S

Maximum Voltage

48V DC

Switch Type

Single Circuit ON-OFF

Battery Inputs

1

Color

Gray

Cable Clearance For 4/0 AWG Cables

1.12in (28.45 mm)

Switch Positions

2

Cable Size to Meet Ratings

4/0 AWG (120mm2)

Battery Combine

No

Mounting Holes

Accept #10 Screw

Alternator Field Disconnect

No

Stud Material

Tinned Copper

Cranking Rating 30 sec

900A

Stud Torque

120 in-lb (13.56 Nm)

Continuous Rating

300A

Terminal Stud Size

3/8" - 16 (M10)

Intermittent Rating

500A (5 min)

Weight

0.65lb (0.29 kg)



Standard Shipping Information

Unit Weight

(lbs)

0.83 lbs (0.38 kg)

Unit Size

(L x W x H)

3.14" x 3.07" x 3.46"
