COMMODORE 02-Series Float Switch

COMMODORE

(No reviews yet) Write a Review
SKU:
CM-2-BS
Weight:
0.29 LBS

Product Description

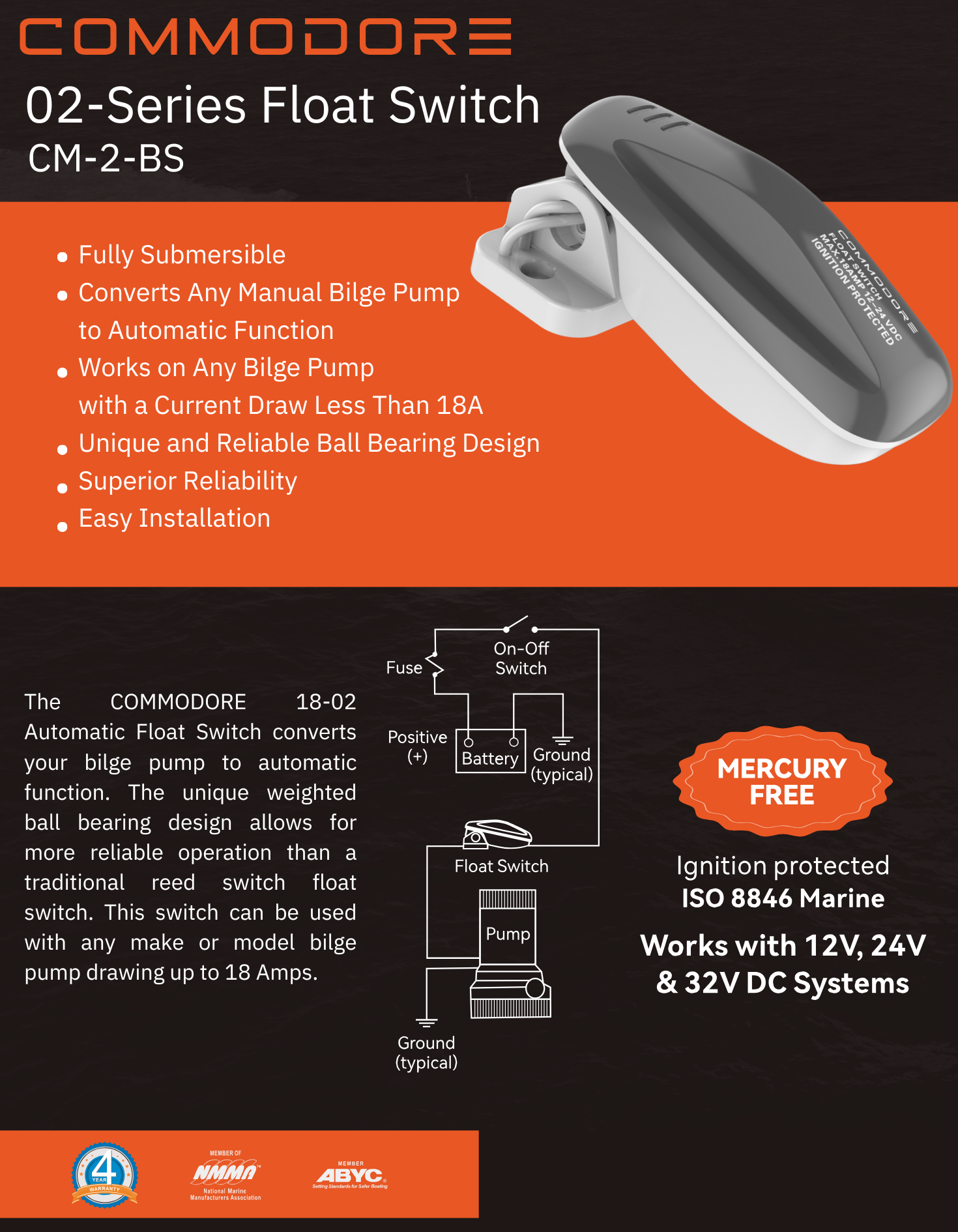

The COMMODORE 02-Series Automatic Float Switch transforms any manual bilge pump into an efficient and reliable automatic system. Designed with a unique ball bearing activation mechanism, this float swith provides superior reliability and longevity compared to traditional reed switches. Built to handle bilge pumps with a maximum current draw of 18A, the switch is compatible with 12V, 24V, and 32V DC systems, making it versatile for a variety of marine applications.

Fully submersible and made with high-quality ABS material, the switch is sealed using ultrasonic welding to ensure leak-proof operation. With a compact design and straightforward installation, it seamlessly integrates into any marine system. The ignition-protected construction and mercury-free design guarantee safe and eco-friendly performance, while its long lifespan ensures consistent operation through millions of cycles.

More Key Features

✔️ Converts Manual Bilge Pumps to Automatic: This float switch transforms any compatible bilge pump into an automatic system, activating the pump when water levels reach 2.36 inches and deactivating it at 1.18 inches.

✔️ Unique Ball Bearing Design: Features an internal weighted ball bearing activation mechanism for superior reliability and smoother operation compared to traditional reed switch designs.

✔️ Fully Submersible and Leak-Proof: Constructed with high-quality ABS material and sealed using ultrasonic welding, the switch is both durable and fully submersible for tough marine environments.

✔️ Mercury-Free and Eco-Friendly: Designed without mercury, ensuring safe operation for the environment while complying with international marine safety standards.

✔️ High Current Capacity: Handles up to 18A at 12V, making it compatible with a wide range of bilge pumps and ideal for demanding marine applications.

✔️ Easy Installation: The compact and user-friendly design allows for straightforward installation, reducing setup time and effort.

✔️ Long Life and High Switching Frequency: Built to withstand up to 10 million cycles, this switch ensures dependable performance for years of use.

✔️ Ignition-Protected Construction: Meets ISO 8846 Marine standards, making it safe for installation in engine compartments or confined spaces.

Specifications

Model

Voltage Compatibility

Max Amps

 Wire Gauge Size

Wire Lead

Dimensions

CM-2-BS

12V / 24V / 32V DC

18A @ 12V / 8A @ 24V

16 AWG

3 ft

7.68" x 5.71"



Standard Shipping Information

Unit Weight

(lbs)

0.29 lbs (0.13 kg)

Selling Unit Size

(L x W x H)

7.68" x 5.71"
